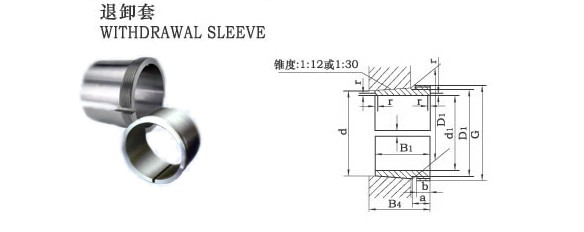

退卸套
    退卸套
    型号 基本尺寸（mm） 配套轴承型号 重量(kg)
    d d1 B1 G 调心滚子轴承
    AH3120 100 95 64 M110X2 153520 3153720 0.65
    AH3122 110 105 68 M120X2 153522 3153722 0.76
    AH3124 120 115 75 M130X2 153524 3153724 0.95
    AH3126 130 125 78 M140X2 153526 3153726 1.08
    AH3128 140 135 83 M150X2 153528 3153728 1.28
    AH3130 150 145 96 M165X3 153530 3153730 1.79
    AH3132 160 150 103 M180X3 153532 3153732 3.20
    AH3134 170 160 104 M190X3 153534 3153734 3.50
    AH3136 180 170 116 M200X3 153536 3153736 4.20
    AH3138 190 180 125 T210X4 153538 3153738 4.90
    AH3140 200 190 134 T220X4 153540 3153740 5.60
    AH3144 220 200 145 T240X4 153544 3153744 10.4
    AH3148 240 220 154 T260X4 153548 3153748 12.1
    AH3152 260 240 172 T290X4 153552 3153752 16.2
    AH3156 280 260 175 T310X5 153556 3153756 17.2
    AH3160 300 280 192 T330X5 3113760 3153760 21.0
    AH3164 320 300 209 T350X5 3113764 3153764 24.7
    AH3168 340 320 225 T370X5 3113768 3153768 29.0
    AH3172 360 340 229 T400X5 3113772 3153772 33.1
    AH3176 380 360 232 T420X5 3113776 3153776 35.8
    AH3180 400 380 240 T440X5 3113780 3153780 39.6
    AH3184 420 400 266 T460X5 3113784 3153784 46.8
    AH3188 440 420 270 T480X5 3113788 3153788 50.2
    AH3192 460 440 285 T510X6 3113792 3153792 57.8
    AH3196 480 460 295 T530X6 3113796 3153796 63.5
    AH31/500 500 480 313 T550X6 31137/500 31537/500 70.8

    AH32系列退卸套基本尺寸和参数

    型号 基本尺寸（mm） 配套轴承型号 重量(kg)
    d d1 B1 G 调心滚子轴承
    AH3218 90 85 63 M100X2 1353218 3113218 0.576
    AH3219 95 90 67 M105X2 1353219 3113219 0.675
    AH3220 100 95 73 M110X2 1353220 3113220 0.767
    AH3222 110 105 82 M125X2 1353222 3113222 1.04
    AH3224 120 115 90 M135X2 1353224 3113224 1.30
    AH3226 130 125 98 M145X2 1353226 3113226 1.60
    AH3228 140 135 104 M155X3 1353228 3113228 1.90
    AH3230 150 145 114 M165X3 1353230 3113230 2.30
    AH3232 160 150 124 M180X3 1353232 3113232 4.09
    AH3234 170 160 134 M190X3 1353234 3113234 4.81
    AH3236 18 170 140 M200X3 1353236 3113236 5.31
    AH3238 190 180 145 T210X4 1353238 3113238 5.90
    AH3240 200 190 153 T220X4 1353240 3113240 6.67
    AH3260 300 280 228 T230X5 1353260 3113260 26.0
    AH3264 320 300 246 T350X5 1353264 3113264 30.6
    AH3268 340 320 264 T370X5 1353268 3113268 35.8
    AH3272 360 340 274 T400X5 1353272 3113272 41.6
    AH3276 380 360 284 T420X5 1353276 3113276 46.3
    AH3280 400 380 302 T440X5 1353280 3113280 52.3
    AH3284 420 400 321 T460X5 1353284 3113284 59.7
    AH3288 440 420 330 T480X5 1353288 3113288 46.8
    AH3292 460 440 349 T510X6 1353292 3113292 57.2
    AH3296 480 460 364 T530X6 1353296 3113296 83.1
    AH32/500 500 480 393 T550X6 13532/500 31132/500 94.7
